Advanced Techniques for Monitoring Multiple Ports with Custom Protobuf Protocol in Wireshark

The previous article, “Wireshark Analysis of Custom Protobuf Protocol,” only monitored a single port. If a game has two socket connections at the same time, such as one for the gateway and another for something else, what should be done?

for i,port in ipairs(tcp_port) do        tcp_port_table:add(port, m_MeteoricProto) end

Reference link: https://wiki.wireshark.org/Lua/Examples#Using_Lua_to_register_protocols_to_more_ports

The Wireshark filter condition can be written like this:

(ip.dst == 192.168.xx.xx or ip.src == 192.168.xx.xx) && tcp.len > 0

This basically displays the custom parsed socket messages. For more details on filter conditions, you can refer to the official website:

https://wiki.wireshark.org/DisplayFilters

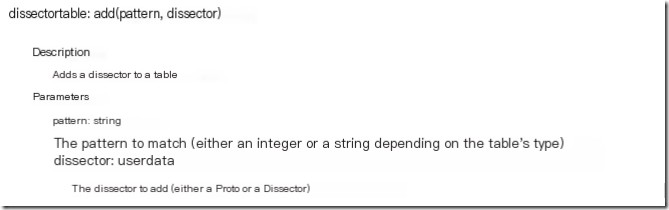

The first question is monitoring multiple ports. There was no answer found in the official documentation.

https://wiki.wireshark.org/LuaAPI/Dissector#dissectortable:add.28pattern.2C_dissector.29

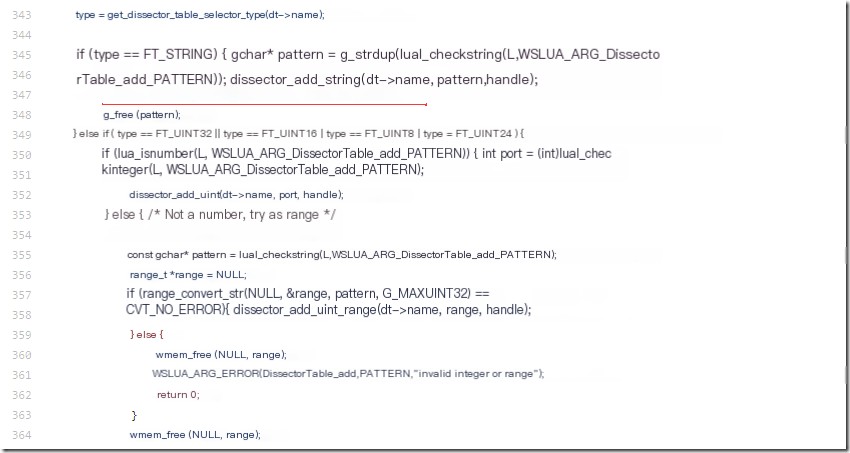

Tracking down to the source code did not provide much clarity either

https://github.com/wireshark/wireshark/blob/master/epan/wslua/wslua_dissector.c

Later tests revealed that the following two methods work as well, one indicates a range, the other lists multiple ports, both having the same effect as using a for loop.

tcp_port_table:add(“8002-8004”, m_MeteoricProto) tcp_port_table:add(“8002,8003,8004”, m_MeteoricProto)
