Comprehensive SMB Enumeration: Tools, Techniques, and Vulnerability Scanning Checklist for Penetration Testing

During the past month, I’ve been working with PWK / OSCP, and I’ve realized that SMB enumeration can be quite challenging, as different tools may succeed or fail on different hosts. While referencing content from NetSecFocus, I put together a checklist for scanning SMB service vulnerabilities during penetration testing. I’ll provide examples in each section, ensuring that any data from the PWK lab is sanitized according to the guidelines.

• Checklist
• Tools
• Details
• Enumerate Hostname – nmblookup
• Scan Shares – smbmap – smbclient – NMAP
• Check Null Sessions – smbmap – rpcclient – smbclient
• Check Vulnerabilities – NMAP
• Overall Scan – enum4linux
• Manual Check
• Samba Services – Windows

Checklist

• Enumerate Hostname – nmblookup -A [ip]
• List Shares

Code Language: javascriptCopy

smbmap -H [ip/hostname]echo exit | smbclient -L \\\\[ip]nmap --script smb-enum-shares -p 139,445 [ip]

Check Null Sessions

Code Language: javascriptCopy

smbmap -H [ip/hostname]rpcclient -U "" -N [ip]smbclient \\\\[ip]\\[share name]

Check Vulnerabilities

Code Language: javascriptCopy

nmap --script smb-vuln* -p 139,445 [ip]

Overall Scan

Code Language: javascriptCopy

enum4linux -a [ip]

Manual Check

Code Language: javascriptCopy

smbver.sh [IP] (port) [samba]- Analyze pcap

Tools

• nmblookup – Collect NetBIOS information on TCP/IP clients used for finding NetBIOS names
• smbclient – An ftp-like client for accessing SMB shares
• nmap – A general scanning tool, comes with checking scripts
• rpcclient – A tool for executing client MS-RPC functions
• enum4linux – Enumerate various smb features
• wireshark

Operational Details

Enumerate Hostname

• nmblookup

Code Language: javascriptCopy

nmblookup -A [IP]    -A - Look up by IP addressExample use:    root@kali:~# nmblookup -A [ip]    Looking up status of [ip]        [hostname]      <00> -         M         [hostname]      <20> -         M         WORKGROUP       <00> -  M         WORKGROUP       <1e> -  M                        <03> -         M         INet~Services   <1c> -  M         IS~[hostname]   <00> -         M         MAC Address = 00-50-56-XX-XX-XX

Scan Shares

• smbmap

Code Language: javascriptCopy

smbmap -H [ip/hostname]

This command will display the shares on the host along with the access permissions you have. Example use:

Code Language: javascriptCopy

root@kali:/# smbmap -H [ip][+] Finding open SMB ports....[+] User SMB session established on [ip]...[+] IP: [ip]:445        Name: [ip]                                              Disk                                                    Permissions        ----                                                    -----------        ADMIN$                                                  NO ACCESS        C$                                                      NO ACCESS        IPC$                                                    NO ACCESS        NETLOGON                                                NO ACCESS        Replication                                             READ ONLY        SYSVOL                                                  NO ACCESS

If you obtain login credentials, you can rerun to show new access permissions:

Code Language: javascriptCopy

root@kali:/# smbmap -H [ip] -d [domain] -u [user] -p [password]    [+] Finding open SMB ports....    [+] User SMB session established on [ip]...    [+] IP: [ip]:445        Name: [ip]                                                 Disk                                                    Permissions            ----                                                    -----------            ADMIN$                                                  NO ACCESS            C$                                                      NO ACCESS            IPC$                                                    NO ACCESS            NETLOGON                                                READ ONLY            Replication                                             READ ONLY            SYSVOL                                                  READ ONLY

• smbclient

Code Language: javascriptCopy

echo exit | smbclient -L \\\\[ip]

exit handles any potential password prompt, as we are checking for null logins

Code Language: javascriptCopy

-L - Get the list of shares from the given host

Example use:

Code Language: javascriptCopy

root@kali:~# smbclient -L \\[ip]Enter WORKGROUP\root's password:        Sharename       Type      Comment        ---------       ----      -------        IPC$            IPC       Remote IPC        share           Disk        wwwroot         Disk        ADMIN$          Disk      Remote Admin        C$              Disk      Default shareReconnecting with SMB1 for workgroup listing.        Server               Comment        ---------            -------        Workgroup            Master        ---------            -------

• NMAP

Code Language: javascriptCopy

nmap --script smb-enum-shares -p 139,445 [ip]--script smb-enum-shares - Specifies the smb enumeration script-p 139,445 - Specifies smb ports

Example use:

Code Language: javascriptCopy

root@kali:~# nmap --script smb-enum-shares -p 139,445 [ip]    Starting Nmap 7.70 ( https://nmap.org ) at 2018-09-27 16:25 EDT    Nmap scan report for [ip]    Host is up (0.037s latency).    PORT    STATE SERVICE    139/tcp open  netbios-ssn    445/tcp open  microsoft-ds    MAC Address: 00:50:56:XX:XX:XX (VMware)    Host script results:    | smb-enum-shares:    |   account_used: guest    |   \\[ip]\ADMIN$:    |     Type: STYPE_DISKTREE_HIDDEN    |     Comment: Remote Admin    |     Anonymous access:     |     Current user access:     |   \\[ip]\C$:    |     Type: STYPE_DISKTREE_HIDDEN    |     Comment: Default share    |     Anonymous access:     |     Current user access:     |   \\[ip]\IPC$:    |     Type: STYPE_IPC_HIDDEN    |     Comment: Remote IPC    |     Anonymous access: READ    |     Current user access: READ/WRITE    |   \\[ip]\share:    |     Type: STYPE_DISKTREE    |     Comment:    |     Anonymous access:     |     Current user access: READ/WRITE    |   \\[ip]\wwwroot:    |     Type: STYPE_DISKTREE    |     Comment:    |     Anonymous access:     |_    Current user access: READ    Nmap done: 1 IP address (1 host up) scanned in 10.93 seconds

Check Null Sessions

• smbmap

Code Language: javascriptCopy

smbmap -H [ip/hostname]

This will show what you can do using the provided credentials (or a null session if no credentials are given). Refer to the examples in the previous section.

• rpcclient

Code Language: javascriptCopy

rpcclient -U "" -N [ip]-U "" - null session-N - no password

Example use:

Code Language: javascriptCopy

root@kali:~# rpcclient -U "" -N [ip]rpcclient $>

After this, you can run rpc commands.

Code Language: javascriptCopy

smbclientsmbclient \\\\[ip]\\[share name]

This command attempts to connect to a share. It includes attempts with no password (or a null password) which may still be successful. Example use:

Code Language: javascriptCopy

root@kali:~/pwk/lab/public# smbclient \\\\[ip]\\shareEnter WORKGROUP\root's password:Try "help" to get a list of possible commands.smb: \> ls.                                   D        0  Thu Sep 27 16:26:00 2018..                                  D        0  Thu Sep 27 16:26:00 2018New Folder (9)                      D        0  Sun Dec 13 05:26:59 2015New Folder - 6                      D        0  Sun Dec 13 06:55:42 2015Shortcut to New Folder (2).lnk      A      420  Sun Dec 13 05:24:51 20151690825 blocks of size 2048. 794699 blocks available

Check Vulnerabilities

• NMAP

Code Language: javascriptCopy

nmap --script smb-vuln* -p 139,445 [ip]

–script smb-vuln* – Runs all smb vulnerability scanning scripts-p 139,445 – smb ports Example use:

Code Language: javascriptCopy

root@kali:~# nmap --script smb-vuln* -p 139,445 [ip]        Starting Nmap 7.70 ( https://nmap.org ) at 2018-09-27 16:37 EDT        Nmap scan report for [ip]        Host is up (0.030s latency).        PORT    STATE SERVICE        139/tcp open  netbios-ssn        445/tcp open  microsoft-ds        MAC Address: 00:50:56:XX:XX:XX (VMware)        Host script results:        | smb-vuln-ms06-025:        |   VULNERABLE:        |   RRAS Memory Corruption vulnerability (MS06-025)        |     State: VULNERABLE        |     IDs:  CVE:CVE-2006-2370        |           A buffer overflow vulnerability in the Routing and Remote Access service (RRAS) in Microsoft Windows 2000 SP4, XP SP1        |           and SP2, and Server 2003 SP1 and earlier allows remote unauthenticated or authenticated attackers to        |           execute arbitrary code via certain crafted "RPC related requests" aka the "RRAS Memory Corruption Vulnerability."        |        |     Disclosure date: 2006-6-27        |     References:        |       https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2006-2370        |_      https://technet.microsoft.com/en-us/library/security/ms06-025.aspx        |_smb-vuln-ms10-054: false        |_smb-vuln-ms10-061: false        | smb-vuln-ms17-010:        |   VULNERABLE:        |   Remote Code Execution vulnerability in Microsoft SMBv1 servers (ms17-010)        |     State: VULNERABLE        |     IDs:  CVE:CVE-2017-0143        |     Risk factor: HIGH        |       A critical remote code execution vulnerability exists in Microsoft SMBv1        |        servers (ms17-010).        |        |     Disclosure date: 2017-03-14        |     References:        |       https://technet.microsoft.com/en-us/library/security/ms17-010.aspx        |       https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2017-0143        |_      https://blogs.technet.microsoft.com/msrc/2017/05/12/customer-guidance-for-wannacrypt-attacks/        |_smb-vuln-regsvc-dos: ERROR: Script execution failed (use -d to debug)        Nmap done: 1 IP address (1 host up) scanned in 5.58 seconds

Overall Scan

• enum4linux

Code Language: javascriptCopy

enum4linux -a [ip]

-a – Enumerate allThe output of the example use is extensive, but look for some key points:

• Output similar to nmblookup
  • Check for null sessions
• Shared files
  • Password policies
  • RID looping output
  • Domain information

Manual Check

• samba ngrep is a great network data tool. Run this in one terminal

Code Language: javascriptCopy

ngrep -i -d tap0 's.?a.?m.?b.?a.*[[:digit:]]' port 139

Then run this in another terminal

Code Language: javascriptCopy

echo exit | smbclient -L [IP]

It will drop a lot of information including the version. rewardone posted a neat script on the PWK forums to easily fetch the Samba version:

Code Language: javascriptCopy

#!/bin/sh#Author: rewardone#Description:# Requires root or enough permissions to use tcpdump# Will listen for the first 7 packets of a null login# and grab the SMB Version#Notes:# Will sometimes not capture or will print multiple# lines. May need to run a second time for success.if [ -z $1 ]; then echo "Usage: ./smbver.sh RHOST {RPORT}" && exit; else rhost=$1; fiif [ ! -z $2 ]; then rport=$2; else rport=139; fitcpdump -s0 -n -i tap0 src $rhost and port $rport -A -c 7 2>/dev/null | grep -i "samba\|s.a.m" | tr -d '.' | grep -oP 'UnixSamba.*[0-9a-z]' | tr -d '\n' & echo -n "$rhost: " &echo "exit" | smbclient -L $rhost 1>/dev/null 2>/dev/nullsleep 0.5 && echo ""When you run it on a box with Samba running, you will get results like this:root@kali:~/pwk/lab/public# ./smbver.sh [IP][IP]: UnixSamba 227a

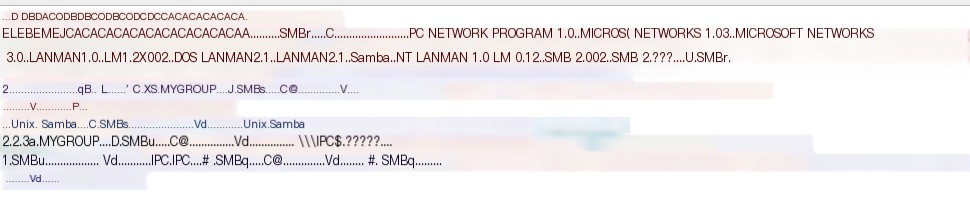

If in doubt, we can check the smb version in PCAP. Here is an example for Unix Samba 2.2.3a:

>

Penetration in Window environments — Windows SMB versioning is more complex, but examining captured packets in wireshark will provide extensive information about the connection. For instance, we can filter ntlmssp.ntlmv2_response to view NTLMv2 traffic, which can yield a wealth of system information about the target host.
