Mastering Network Traffic Analysis with Wireshark on VMware Network Adapter VMnet8

Hi everyone, today I’m here to share some network knowledge, including information about the VMware Network Adapter.

Using Wireshark to capture packets on the VMware Network Adapter VMnet8 to analyze traffic on the virtual machine.

The TCP Three-Way Handshake with VMware Network Adapter

As shown in the image, opening an SSH tool to log into the virtual machine requires establishing this standard TCP connection, a three-way handshake.

Client — > Server: SYN Seq=0

Client < — Server: SYN+ACK Seq=0 ACK=1

Client — > Server: ACK Seq=1 ACK=1

There’s a classic interview question: why is it 3 times, not 2 or 4?

Because TCP is a full-duplex protocol, each party can independently send data to the other. Both parties need to send a SYN request and ACK once to establish a connection.

It begins with a SYN, followed by a SYN+ACK, and concludes with an ACK. Just three times.

During this process, the Linux kernel maintains two queues: the established connections queue and the half-open connections queue.

View the established connections queue:

Language: Javascript Copy

netstat -ant | grep ESTABLISHED

/>

View the half-open connections queue:

Language: Javascript Copy

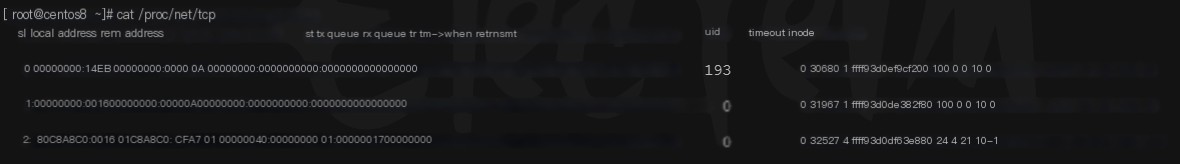

cat /proc/net/tcp

I copied down the third packet 👇

Language: Javascript Copy

1   0.000000    192.168.200.1   192.168.200.128 TCP 66  53159 → 22 [SYN] Seq=0 Win=64240 Len=0 MSS=1460 WS=256 SACK_PERM2   0.000174    192.168.200.128 192.168.200.1   TCP 66  22 → 53159 [SYN, ACK] Seq=0 Ack=1 Win=29200 Len=0 MSS=1460 SACK_PERM WS=1283   0.000410    192.168.200.1   192.168.200.128 TCP 54  53159 → 22 [ACK] Seq=1 Ack=1 Win=1051136 Len=0

You can see in number 3 there Win=1051136

I was a bit puzzled here, isn’t the TCP window size 16 bits (65536)?

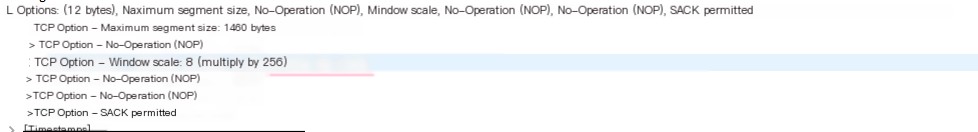

Later, I found out it’s related to WS (window_scaling) window scaling.

Language: Javascript Copy

# Enable, returns 1sudo sysctl net.ipv4.tcp_window_scaling

It is part of the TCP_OPTION content, an extension to the TCP protocol that allows window size expansion to larger values, overcoming the performance limitations of the original TCP window size design.

The part of RFC 7323 briefly describes the TCP Window Scaling option.https://tools.ietf.org/html/rfc1323#page-8

There’s also SACK (Selective Acknowledgment), a part of the retransmission mechanism.

A simple example 👇

Sender: Send A, B, C, D

Receiver: Acknowledges A, D

Sender: Retransmit B, C

The TCP Four-Way Teardown

Here, open a new SSH window, then close it to capture the TCP FIN packet.

Language: Javascript Copy

74  21.966960   192.168.200.1   192.168.200.128 TCP 54  53329 → 22 [FIN, ACK] Seq=3055 Ack=3486 Win=1050880 Len=075  21.967027   192.168.200.128 192.168.200.1   TCP 54  22 → 53329 [ACK] Seq=3486 Ack=2991 Win=35072 Len=076  21.978675   192.168.200.128 192.168.200.1   TCP 54  22 → 53329 [FIN, ACK] Seq=3486 Ack=3056 Win=35072 Len=077  21.978982   192.168.200.1   192.168.200.128 TCP 54  53329 → 22 [ACK] Seq=3056 Ack=3487 Win=1050880 Len=0

It’s also very straightforward here👇

Client — > Server: FIN + ACK Seq=3055 Ack=3486

Client < — Server: ACK Seq=3486 ACK=2991 (data not fully received, ACK only up to 2991)

Client < — Server: FIN + ACK Seq=3486 Ack=3056

Client — > Server: ACK Seq=3056 Ack=3487

Every FIN signal requires an ACK response, twice each way, totaling four times.

FIN indicates that I’ve finished sending and am waiting to close, but the other side is still busy, so they can only ACK to acknowledge.

ARP Protocol

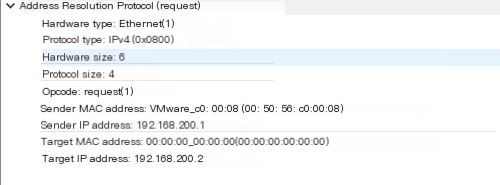

Address Resolution Protocol (request).

Its triggering scenarios are as follows:

1. When the IP address is known but not the MAC address, it initiates an ARP protocol (cache table not found).
2. Local ARP cache table expired
3. ARP request acknowledgment lost

Language: Javascript Copy

112 74.131366   VMware_c0:00:08 Broadcast   ARP 42  Who has 192.168.200.2? Tell 192.168.200.1113 74.877192   VMware_c0:00:08 Broadcast   ARP 42  Who has 192.168.200.2? Tell 192.168.200.1

This seems so personalized, haha, “Who has?”

The 00:00:00:00:00:00 target MAC address is typically used for broadcasting messages or when a target MAC address is unknown.

Over!

Conclusion

This concludes the article, thank you for reading. If there’s anything incorrect, please kindly help correct it! Thank you~😋
